Monroe Street Bridge

Posted on June 12, 2011January 25, 2016 by shayna

Crosses: Passaic River
Location: Monroe Street connecting Passaic and Garfield, NJ [satellite map]
Carries: 2 vehicular lanes, 1 pedestrian sidewalk
Design: arch bridge
Date opened: June 13, 1908
Postcard view: “Monroe Street Bridge, Passaic, N.J.”

The Monroe Street Bridge is a reinforced concrete arch bridge over the Passaic River in New Jersey, connecting the towns of Passaic and Garfield.

Gilbert D. Bogart & East Passaic

In early 1873, Gilbert D. Bogart set out to develop a suburb to the town of Passaic, which he called East Passaic. He and his associates formed the East Passaic Land Company and bought property along the Passaic River from Monroe Street to Van Winkle Avenue. His company was responsible for the first development in the area. In 1875, a bridge across the Passaic was built at Monroe Street by Joseph Scott, and seven houses were also constructed. However, the financial panic of 1873 brought Bogart’s project to a grinding halt. Lots on the land acquired by the East Passaic Land Company could not be sold even at greatly reduced prices. The company suffered heavy losses and years passed without any sign of recovery.

On December 8, 1878, Scott’s Monroe Street Bridge was washed away when the Passaic River overflowed its banks. In 1881, the Bergen County Short Cut (a branch of the Erie Railroad) was laid along Monroe street, and a rail bridge was built to Passaic (next to where the washed-out bridge had been); a station was created and named after President Garfield.

Rail bridge next to the Monroe Street Bridge

Things still were not improving for Bogart’s company, and in 1882 it sold all its land under foreclosure to the Garfield Land Association. The name “East Passaic” had become associated with failure and the town adopted the name of Garfield instead. The land was sold as individual lots by the Garfield Land Association with the remainder going to the newly formed Monroe Street Bridge Land Company, which built a replacement bridge shortly after.

The Current Bridge

The bridge currently crossing Monroe Street was built in 1908 by the C.W. Dean Company of New York. The plans for the bridge had been put together by F.R. Long Company Engineers and Contractors in August of 1907. It is a three-span, 306-foot long deck arch bridge on a concrete and stone substructure. The bridge is made up of three equal elliptical arch spans. It originally featured a decorative railing with vase-shaped balusters. The bridge was important to the industrial and commercial development of both Passaic and Garfield, and is the only existing pre-World War II multi-span concrete arch bridge remaining in the United States.

The Monroe Street Bridge opened on June 13, 1908. A parade was held and Mayor John Karl of Garfield and Mayor Frederick R. Low of Passaic met to officially open the bridge to the public. A celebration was held in a nearby park afterward.

Alterations

The Monroe Street Bridge has been repaired extensively over the years. In 1947 guide rail was added to the curbs, and new concrete curbs followed in 1948. Many repairs to the substructure were made using gunite (a dry form of shotcrete) in 1949. Large parts of the balustrades were missing or badly damaged, and they were replaced by a more utilitarian railing sometime after Bergen County did a survey the bridge in the early 1980s. New Jersey’s 2002 survey of the bridge deemed that it had lost much of its “visual integrity” due to the nature of the gunite repairs [1].

[ continue to references ]

Passaic Street Bridge

Posted on September 14, 2010January 25, 2016 by shayna

Crosses: Passaic River
Connects: Wall Street, Passaic and Passaic Street, Garfield, NJ [satellite map]
Carries: 2 vehicular lanes, 2 pedestrian sidewalks
Design: girder bridge
Date opened: 1898

The Passaic Street Bridge is the earliest known example of a multi-span through-girder bridge in Bergen County, New Jersey. It connects the towns of Passaic and Garfield and is the third bridge at that location.

The Iron Bridge

The first bridge to cross the Passaic River at Garfield was known as the Iron Bridge; it opened in 1868. On September 11, 1871, one of the bridge’s three spans collapsed while carrying a team of horses and a driver. All fell into the Passaic, and while the horses escaped without injury, their driver was killed. A decision was made to completely rebuild rather than repair, and a new Iron Bridge opened in 1872.

That bridge was replaced in 1898 with the current structure, again made of iron but also reinforced with cement. The engineers on the project were the Wise & Watson Company of Passaic. The builders were the F.R. Long Company. The bridge is 233 feet long and, like its predecessors, is composed of three spans resting on ashlar masonry abutments.

The Flood of 1903

The summer of 1903 brought above average rainfall, and a tropical storm hit the east coast in early October. For nearly two weeks the Passaic River overflowed its banks in what became known as the Flood of 1903 (still the largest on record for the area). Almost all the bridges downriver of the Great Falls in Paterson were washed away, but the Passaic Street Bridge managed to survive the torrents.

Alterations

The Passaic Street Bridge has undergone a few rounds of alterations, none of which are considered to impact its historic status [1]. Welded plates were added to the deck girders and concrete caps to the masonry below the bridge. In 1989 the bridge was rehabilitated, with the deck and stringers replaced and the floor beams mended.

011passaicst03 — Passaic Street Bridge from the Passaic side of the river

[ continue to references ]

Passaic River Bridge (1&9)

Posted on December 28, 2009March 2, 2016 by shayna

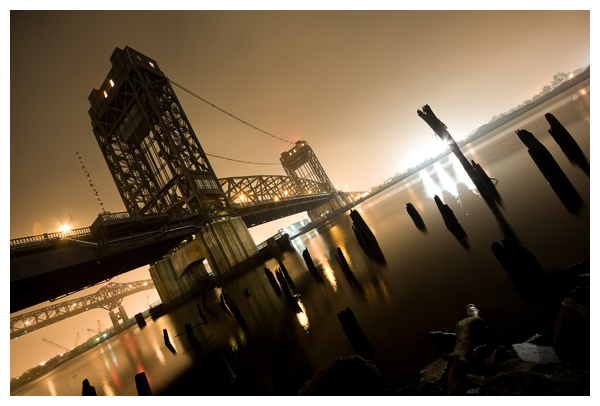

Passaic River Bridge with Pulaski Skyway in background

Crosses: Passaic River
Connects: South Kearny and Newark, NJ [satellite map]
Carries: 4 vehicular lanes, 2 sidewalks
Design: vertical lift
Date opened: January 26, 1941

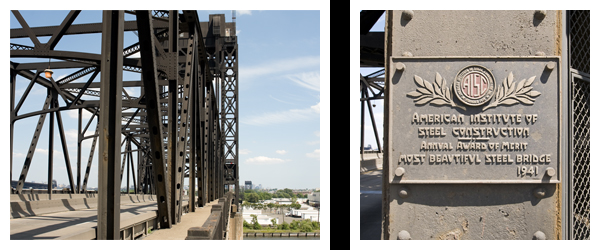

Traveling east along the 1&9 Truck Route from Newark to Jersey City, you may notice a small steel plaque on the Passaic River crossing proclaiming that span to be 1941’s Most Beautiful Steel Bridge. That designation, given by the American Institute of Steel Construction, was awarded the year that bridge opened to traffic.

The bridge replaced a low level swing span that had been in place since 1921. That bridge, with a 10 foot clearance over the river, required an average of 30 openings a day to accommodate marine traffic, causing significant automobile traffic delays. Problems were exacerbated by the opening of the Holland Tunnel in 1927 as the final link between the interstate Lincoln Highway and New York City. Though the opening of the Pulaski Skyway, located just a short distance north of this route, was intended to alleviate these problems, the Skyway was effectively obsolete as soon as it was opened to traffic. The diversion of all truck traffic from the Skyway in 1933 further complicated problems along the route. Construction of a new span commenced in 1938, at a projected cost of two million dollars.

Design

The vertical lift design of the new bridge required the construction of two large steel towers on each side of the navigation channel, connected by a movable deck, which has a span of 332.5 feet. In the closed position, the new bridge provided 40 feet of clearance over the Passaic, reducing the number of daily bridge openings to an estimated 5 per day. Tower drive motors, a fairly new innovation at the time, were able to lift the deck 95 feet above its closed position, allowing for a maximum of 135 feet clearance, a minimum height specified by the War Department for marine crossings. The chief engineer was Morris Goodkind, with the firm of Howard, Needles, Tammen and Bergendoff as consulting engineers. The substructure was fabricated by Senior and Palmer and the superstructure by the American Bridge Company.

Construction

The Passaic River Bridge took three years to complete under the supervision of lead engineer Morris Goodkind and the New Jersey State Highway Commission, with the final cost just barely exceeding the projected estimate by just under $56,000. The bridge was constructed as close to the south side of the old span as logistically possible in order to ease the transfer of the traffic alignment from the old bridge to the new. During the final phase of construction, with everything in place except for the moveable deck, river traffic was halted for 72 hours while the deck could be installed.

In what must have been a very carefully choreographed procedure, the deck was floated into the work location on a barge at high tide and aligned with the rest of the structure. As the tide receded, the deck gradually sank into position on the bridge piers. After the 64 lifting ropes attached to the lift’s counterweights were connected to the deck, the bridge was essentially complete, save for some fine tuning needed to ensure proper bridge operation. It was opened to traffic at 11 PM on Sunday, January 14th, 1941.
